TITAN is the No.1 semi trailer manufacturer in China, we offer 5 year warranty.
Here is detailed video of this wind blade adapter:
wind turbine blade transport trailer , wind turbine trailer , wind blade trailer , wind turbine blade trailr ,wind blade adapter
Specification of wind turbine blade trailer:
Overall dimension: 11090mm * 3500mm *3890mm
Loading capacity: 23.5 Tons
Max rotation angle: 360°
Blade elevation range 0°-47°
Blade pitch angle: 0°-360°
Horizontal rotation angle of adaptor: 0°-360°
Hydraulic station: 40KW Four-cylinder Diesel Engine
Transportable wind blade specification: 121-155 model
Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

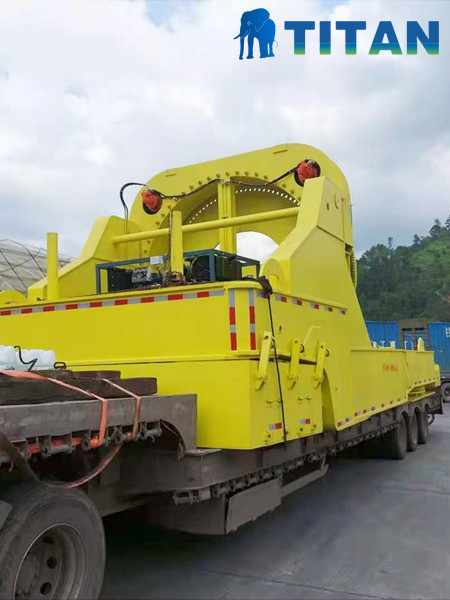

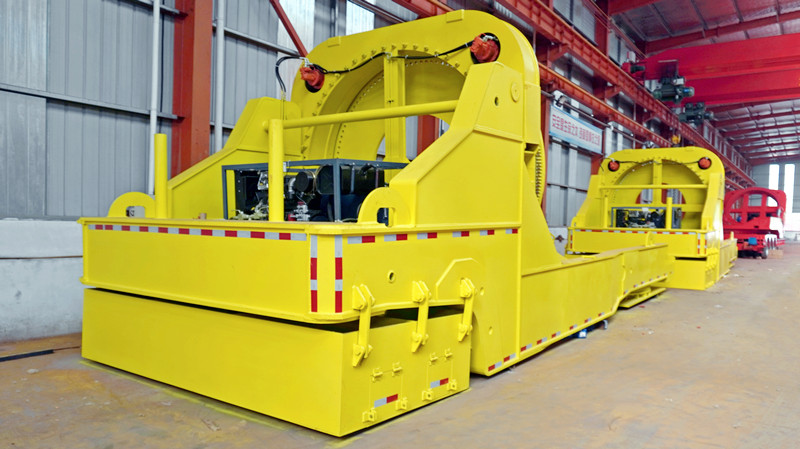

These type of wind turbine trailer is used to transport turbine blades on mountain roads and curved roads as well.
Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special wind turbine blade transport trailer. The design is made in such a way that the wind blade adapter can lift up and down making it easier for the wind blade trailer to steer easily.
