TITAN can be customized blade adapter trailer according to your transportation requirements.
TITAN is the No.1 semi trailer manufacturer in China, we offer five-year warranty. Welcome contact us to get quotation and more details.
Here is detailed video of this windmill rotor blade adapter:
Specification of blade adapter trailer:
Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m
Axle: 4 lines 8 axles
Tires: 32 units
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine
Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model
Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

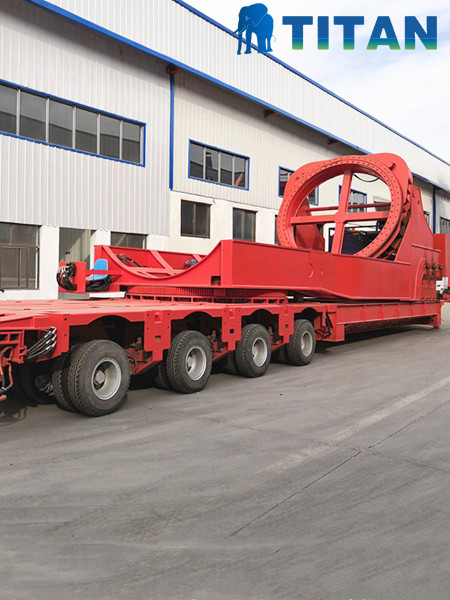

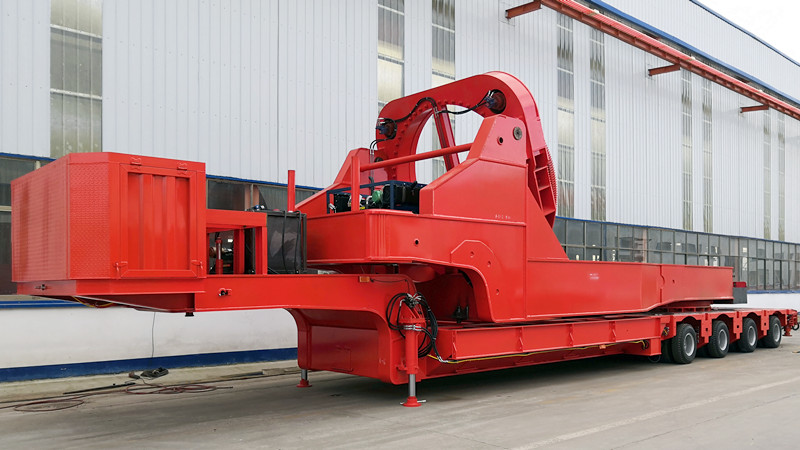

TITAN windmill rotor blade adapter that is mounted on 4 lines 8 axles trailer.
The special windmill rotor blade trailer can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades.
